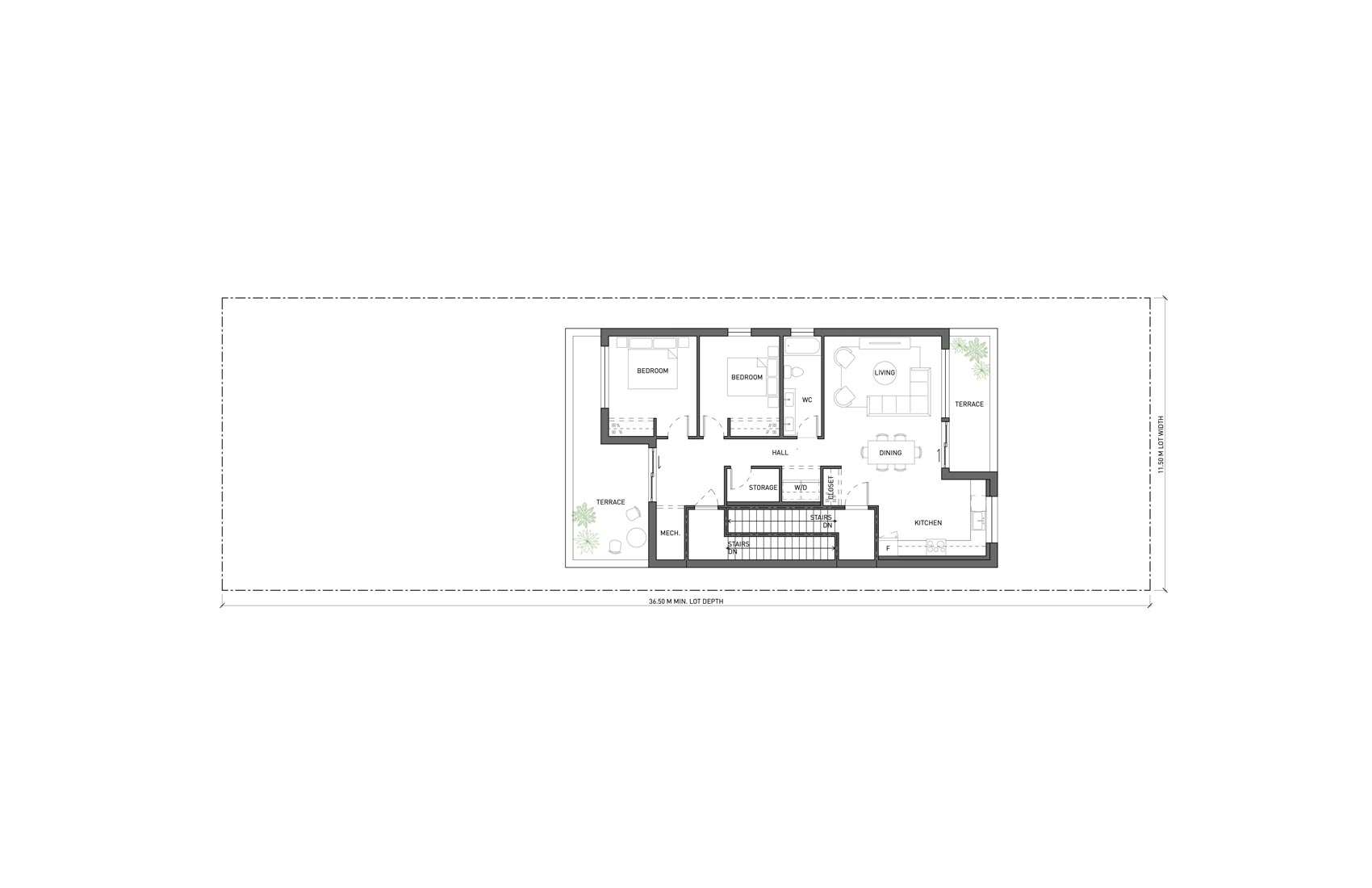

Third Floor

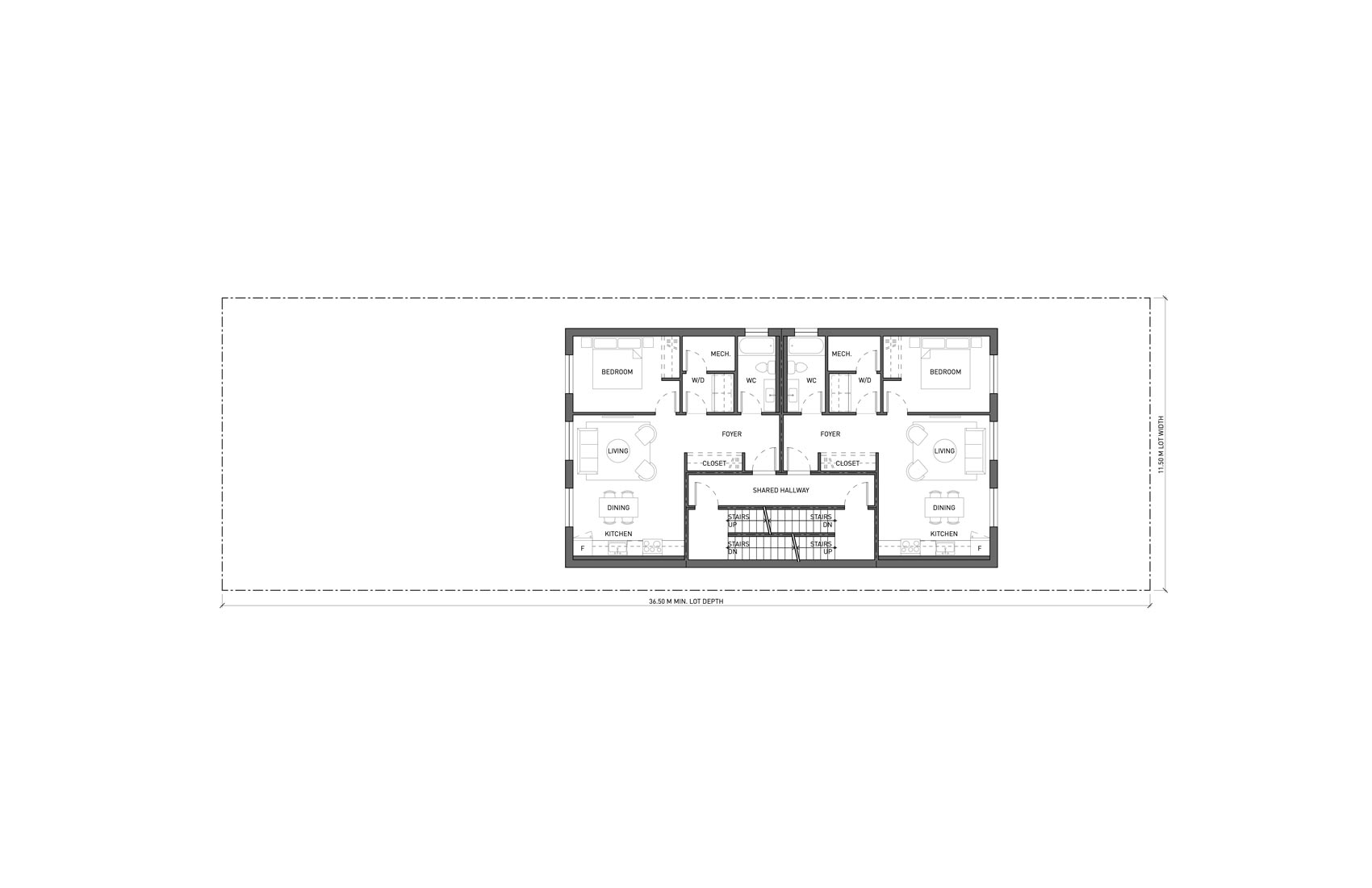

Second Floor

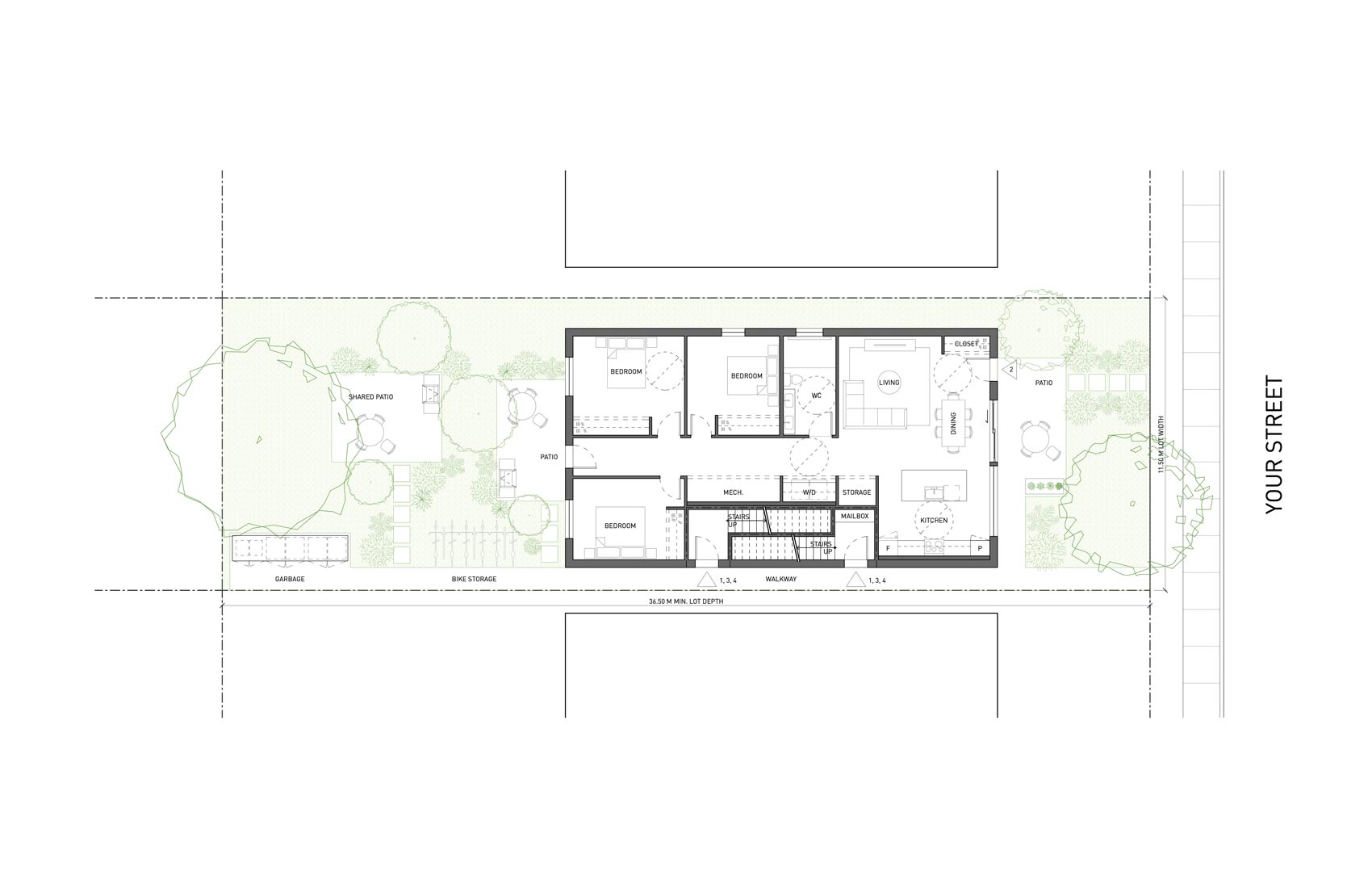

Ground Floor
Ideas for New Multiplexes
New Multiplex - Flats with Scissor Stair Medium
In this style of New Multiplex, the ground and third floors are each occupied by one unit, while the second floor is split into 2 units. Unit 1 is accessed directly from grade, while Units 2, 3, 4 are accessed by shared staircases. This design uses a scissor stair, where the two staircases are intertwined, and it has no basement.
Building Details
Total Unit Count: 4 Units | Total Floor Area = 376.52 sqm
Unit 1
3 Bed
1 Bath
129.17 m2
Unit 2
1 Bed
1 Bath
59.27 m2
Unit 3
3 Bed
1 Bath
59.29 m2
Unit 4
2 Bed
1 Bath
110.69 m2
Cost Considerations
*This sample design might cost somewhere in the range of $1,843,300 - $2,728,000
